The proper supply of air is necessary in any cooling system to ensure that the equipment works effectively. Whether used in industrial control panels, server cabinets, telecom enclosures, or electronic equipment, cooling fans constantly draw air through the system. Sometimes, that air also carries dust and contaminants that corrode the internal components. Hence, fan filters become necessary for industrial cooling solutions.
This guide will help you understand the 120mm fan filters, which make a standard fit to most cooling fans. These filters ensure clean equipment, improved cooling performance, and reduced maintenance costs. The awareness about how these filters work will be beneficial in the long run.

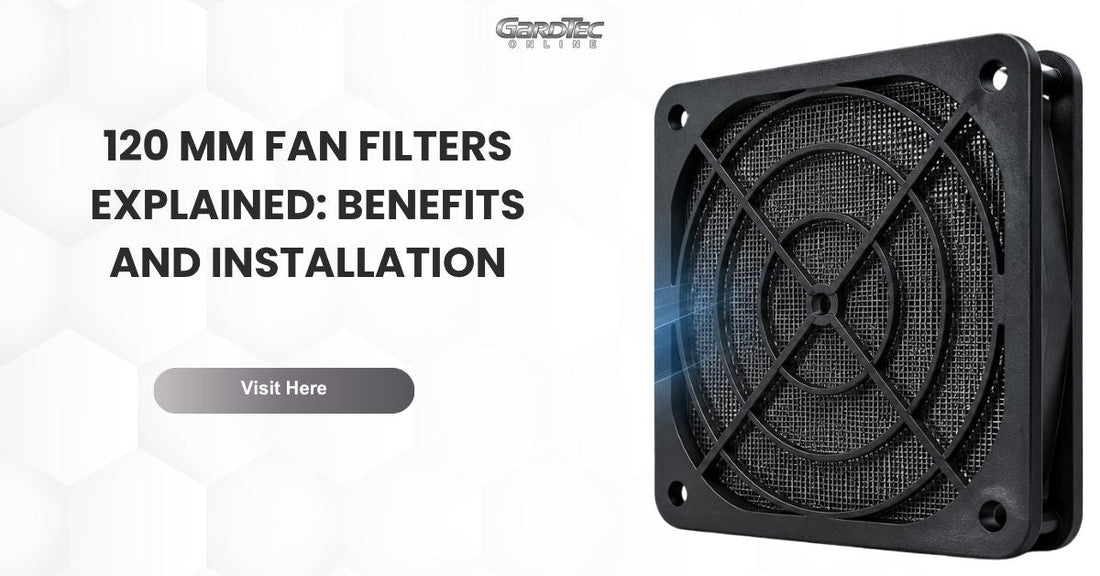

What Are 120 mm Fan Filters?
The 120 mm fan filters are protective filtering devices meant to be used in conventional 120 mm fans. The filters are normally mounted on top of the fan to prevent dust, dirt, and airborne particles from reaching the interior of the enclosure.
They are commonly used in:
- Control panels
- Electrical enclosures
- Network cabinets
- Data centers
- Telecommunication equipment
- Factory machinery
- Commercial electronics
By creating a barrier between the environment and internal components, the fan filters help maintain cleaner operating conditions while allowing sufficient airflow for effective cooling.
Key Benefits of 120 mm Fan Filters
- Less Dust Accumulation: Dust accumulation is one of the major problems that may lead to cooling failure. As soon as the particles accumulate inside the electronic components, heat sinks, and the fan blades, the flow of air is impeded. The installation of 120 mm fan filters helps to reduce the quantity of dust in the enclosure.
- More Reliability of the Equipment: Electronic equipment works efficiently under clean conditions. The excessive amount of dust may cause overheating and even malfunction of the components. A reliable filtering system from trusted industrial cooling suppliers like GardTec helps to protect your expensive equipment from any malfunction or damage.
- Less Maintenance Costs: When the filters are not used, the equipment requires regular cleaning. The dust filter for fan prevents dirt particles from entering the equipment. It helps to avoid labor costs and equipment maintenance.
- Improved Cooling Efficiency: Clean fans can ensure air circulation much more effectively than those with dust buildup. Filters play a key role in ensuring that cooling systems are able to work within their desired efficiency range.
- Increased Equipment Lifetime: There is less contamination, which puts less strain on the equipment, improving its lifetime.
Common Applications of 120 mm Fan Filters
The versatility of 120 mm fan filters allows their use in various conditions. A standard fan filter assembly can be installed wherever cooling fans take outside air into the enclosure.
Typical applications are:
- Automation cabinets
- Power panels
- Server computers
- Telecommunications cabinets
- Production machines
- HVAC controls
- Outdoor electronics boxes
In all instances, filtering provides a good combination of cooling efficiency and safety of equipment.
An Overview of 120 mm Fan Filter Benefits
|
Feature |
Without 120 mm Fan Filter |
With 120 mm Fan Filter |
|
Dust Inside Equipment |
High dust buildup |
Significantly reduced |
|
Cooling Efficiency |
Declines over time as dust accumulates |
Remains more consistent |
|
Cleaning Frequency |
Frequent internal cleaning required |
Less frequent maintenance |
|
Equipment Lifespan |
May be shortened by contamination |
Potentially extended |
|
Risk of Overheating |
Higher |
Lower |
|
Maintenance Costs |
Higher over time |
Lower over time |
|
System Reliability |
More prone to issues |
More dependable operation |
How to Install a 120 mm Fan Filter?
Installing a filter is generally a straightforward process that requires minimal tools.
Step 1: Power Down Equipment
Make sure to disconnect all electrical components prior to doing any installations or maintenance.
Step 2: Identify the Fan Location
Identify the location of the fan at the point where air is drawn into the enclosure. Usually, the filters are attached to the intake end of the system rather than the exhaust end.
Step 3: Attach the Filter
Align the filter media and frame with the fan opening. Make sure it matches up with the mounting holes.
Step 4: Mount the Filter
Mount the filter using the mounting clips or screws provided. Ensure that the filter is mounted firmly and that airflow is not hindered.
Step 5: Check the Flow
Upon completion of installation, start the system again to see whether the fan is running properly. A good cooling fan filter would mount well with sufficient ventilation capacity.
Maintenance Best Practices for Fan Filters
Maintenance plays an integral role in the efficient operation of any fan filtration system.
- Inspect Frequently: The frequency of inspection varies based on the conditions in which the fan filter unit is operated. Weekly inspections may be necessary in dirty industrial settings, whereas monthly and quarterly inspections suffice in office conditions.
- Clean Reusable Filters: Though filters are reusable, cleaning reusable filters depends on the type of filter used and includes dust removal through vacuuming, washing the filter, and drying it completely before re-installation.
- Check for Replacement: A fan filter cannot last forever, even when reused. Prompt fan filter replacement ensures efficient and effective airflow with increased protection.
- Check Airflow: In case of poor cooling or increased internal temperature, check the condition of the filter. Restricted airflow suggests that cleaning or replacement of the filter is needed.
Selecting the Right Fan Filter
The right selection of the filter needs to achieve a balance between the effectiveness of filtration and adequate air flow needs.
This includes the following checklist:
- Environmental conditions around the fan operation
- Concentration of dust particles in the surrounding air
- Need for airflow efficiency and speed
- Equipment susceptibility
- Proximity to maintenance
In the case of industrial enclosures, an appropriately sized cabinet fan filter can achieve both of these objectives effectively.
Conclusion
The 120 mm fan filters are among the most cost-effective and efficient ways to protect your cooling system or other electronic equipment from dust particles. They contribute to the reduction of dust deposition, increase the efficiency of cooling, reduce the costs of maintenance, and increase the equipment lifespan.
FAQs
Q1. What is a 120 mm fan filter?
The fan filter 120 mm is a protective mesh designed specifically to cover standard computer fans and/or vents.
Q2. Is 120 mm a standard fan size?
Yes, the 120 mm fan is definitely the most common size used in desktop computer casings and radiators, as well as other industrial applications.
Q3. Which is better 80 mm or 120 mm fan airflow?
The 120 mm fan is definitely superior to an 80 mm fan in terms of air movement. Big fans have a higher air flow volume (CFM) but at much slower speeds, producing much less noise and providing better cooling capacity.
Q4. What are 120 mm fan filters made of?
The 120 mm fan filters are commonly available in magnetic mesh, aluminum mesh, and foam designs. Magnetic filters offer easy installation, aluminum filters provide durability, and foam filters capture finer dust particles, though they may slightly reduce airflow.
Q5. Why use a 120 mm fan filter?
Fan filters play an important role in preventing dust accumulation, which results in overheating and degradation of system performance. Fan filters enhance the durability of fans and system components and make maintenance easy because filters do not need to be removed from the entire system to be changed.
