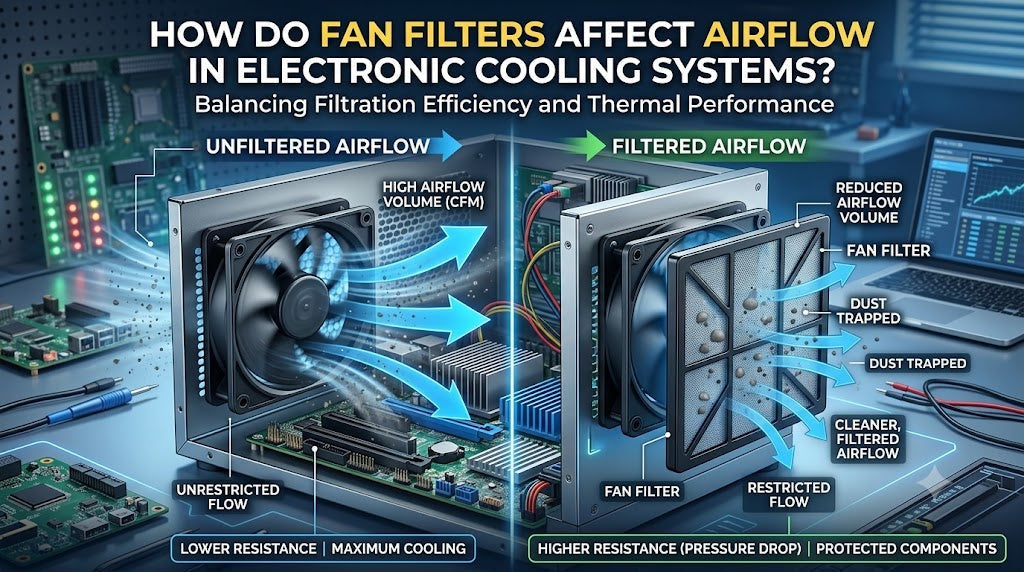

Pull the side panel off an industrial control cabinet or an unmaintained server rack after eighteen months in the field, and you will almost certainly find a blanket of fine gray lint coating the heatsinks. Dust settles between cooling fins, insulates hot silicon, and quietly drives up internal operating temperatures until fans run at full tilt just to keep things from throttling.
The reflex fix is straightforward: put a filter over the intake fan. Catching dirt before it reaches circuit boards makes sense, but air cooling does not happen in a vacuum. Every filter is a physical barricade. The moment you place porous media or wire mesh in front of an axial fan, you alter the system impedance, shift the fan’s operating point on its pressure-velocity curve, and cut into the volumetric airflow you counted on during thermal modeling.
As detailed in this Fan Filters White Paper, balancing dust prevention against thermal performance means understanding what that filter actually does to your airflow path.
What Is a Fan Filter Assembly?
A fan filter is a modular barrier mounted directly over an intake or exhaust vent. While large or specialized enclosures sometimes deploy an integrated motorized fan filter unit or pleated panels similar to miniature HVAC units, standard electronic enclosures almost universally rely on compact, frame-mounted assemblies sized to match standard square fan footprints (typically 60mm, 80mm, 92mm, 120mm, or 140mm).
Whether sourced as discrete components or bundled together as an off-the-shelf fan kit, a standard plastic assembly uses three interlocking layers:
- The Finger Guard (Base): Screws directly into the chassis or fan frame. It provides structural backing, maintains clearance so the spinning blades cannot strike anything, and prevents fingers or stray wiring from contacting the impeller.
- The Filter Media: The porous core that captures airborne particles. In plastic assemblies, this is almost always a sheet of open-cell reticulated polyurethane foam.
- The Retainer: A snap-on plastic bezel that sandwiches the media flat against the guard. The snap-fit mechanism is intentional; it allows a technician to pull the media out for cleaning or replacement without unbolting the fan itself.
Metal assemblies take a different approach. Rather than three modular plastic pieces, an industrial mesh filter generally consists of a stamped aluminum or stainless steel frame housing multiple layers of woven wire mesh or expanded metal foil.
Regardless of the build style, the core function remains the same: force incoming air through a labyrinth of small openings where momentum carries airborne particulates into fibers or wire strands, trapping them before they enter the enclosure.
The Physics: How Filters Restrict Airflow
Cooling fans are not positive-displacement pumps. They do not deliver a fixed volume of air regardless of resistance.
Fan manufacturers rate their hardware using two baseline figures: maximum airflow (measured in Cubic Feet per Minute, or CFM) and maximum static pressure (measured in millimeters or inches of water column, mmH2O or inH2O). Crucially, these two numbers represent opposite ends of a performance spectrum:
- Maximum CFM occurs at zero resistance, when the fan spins in open, unrestricted space.
- Maximum Static Pressure occurs at total shutoff, when the fan pushes against a sealed wall and moves zero air.
In the real world, a fan operates along a P-Q curve—a curved line mapping pressure against delivered airflow. The enclosure itself provides natural resistance through vent grilles, component spacing, and internal cabling. The moment you run a fan with filter protection across that intake, you introduce a sharp spike in local system impedance.
Air moving through a clean foam filter experiences drag across thousands of microscopic struts. As the air squeezes through these tiny passages, friction bleeds off velocity, causing a measurable pressure drop across the thickness of the media.
Because the fan now has to fight against this added backpressure, its operating point shifts back along its P-Q curve. The result? The actual volume of air entering your enclosure drops—often by 15% to 35% with a clean filter, and substantially more as dust collects on the outer surface.
To see this interaction between media density, fan speed, and enclosure thermal rise in real time, test the parameters below:
45 PPI vs. Higher-Density Filter Media
When specifying reticulated polyurethane foam, you will encounter the rating PPI (Pores Per Inch). PPI defines linear pore frequency: a 30 PPI sheet has large, coarse voids visible to the naked eye, while a 100 PPI sheet looks and feels like dense velvet.
In electronic cooling design, 45 PPI is the industry baseline.
There is a practical reason 45 PPI dominates commercial off-the-shelf assemblies: it hits an acceptable middle ground. It stops the debris that causes immediate thermal disasters—carpet fuzz, hair, cardboard fibers, and large dust clumps—while keeping pressure drop modest enough that a standard, low-noise axial fan can push through it without stalling.
Stepping up to 60 PPI or 100 PPI dramatically tightens the pore structure, allowing the media to capture fine dry powders, drywall dust, and light industrial particulates. However, fluid dynamics imposes a steep tax: pressure drop does not scale linearly with PPI; it climbs exponentially.
|
Media Rating |
Airflow Penalty (Clean) |
Particulate Capture Profile |
Typical Operating Environment |
Maintenance Frequency |
|
30 PPI Foam |
Minimal (~8% – 15% CFM loss) |
Coarse lint, pet hair, large carpet dust |
Clean server rooms, telecom data centers |
6 to 12 months |
|
45 PPI Foam |
Moderate (~18% – 30% CFM loss) |
Standard household dust, clothing fibers, dander |
Standard office workstations, retail kiosks, edge routers |
3 to 6 months |
|
60 PPI Foam |
High (~30% – 50% CFM loss) |
Fine dust, ambient outdoor dust, light soil |
Light manufacturing floors, shipping warehouses |
1 to 2 months |
|
100 PPI Foam |
Extreme (~55% – 75% CFM loss) |
Microscopic particulates, sawdust, abrasive grit |
Heavy industrial plants, grain processing, woodworking |
2 to 4 weeks |
|
30x30 Metal Mesh |
Low to Moderate (~12% – 22% CFM loss) |
Large debris, bugs, foreign object protection |
Outdoor enclosures, telecom switches requiring EMI shielding |
Periodic washdown |
If you install a 100 PPI filter on a fan designed for low-noise open air delivery, the fan blades will often begin to stall. When an axial blade stalls, air slips off the edges rather than moving forward, noise levels jump, and airflow drops off a cliff. Use high-density media only if you have paired it with a high-static-pressure fan designed to overcome high impedance.
Plastic vs. Metal Fan Filter Assemblies
Plastic Filter Assemblies
Plastic filter assemblies rely on injection-molded ABS or UL94V-0 flame-retardant nylon.
- The upside: They are lightweight, non-conductive, and inexpensive. The snap-fit retainers allow fast, tool-free servicing. You can pop the faceplate off with your thumb, slide out a soiled foam pad, insert a clean one, and snap the cover back in under thirty seconds.
- The downside: Plastic degrades under intense ultraviolet radiation, becomes brittle in freezing environments, and will warp under extreme heat. Furthermore, plastic provides zero attenuation against radio frequencies.
Metal Filter Assemblies
Metal assemblies use aluminum frames paired with layers of woven stainless steel or aluminum mesh (often a 30x30 or 40x40 grid, sometimes corrugated to increase surface area).
- The upside: A rugged metal mesh filter handles rough treatment, wide temperature swings, and chemical washdowns without cracking. More importantly, when bonded to a metal chassis, it preserves EMI/RFI shielding integrity. If an enclosure must pass stringent FCC, CE, or military electromagnetic compatibility (EMC) testing, an unshielded plastic cutout acts like a radio antenna leaking RF noise. A grounded metal mesh filter forms a continuous conductive barrier across the vent hole.
- The downside: Metal mesh cannot match the particulate capture efficiency of open-cell foam for fine dust. Fine powders pass straight through a 30x30 metal mesh unless it is coated with an adhesive tackifier oil—which turns cleaning into a messy solvent-degreasing task.
Intake vs. Exhaust Filter Orientation
Where you put the filter in the airflow loop matters just as much as what the filter is made of. The installation orientation determines whether the chassis operates under positive or negative internal pressure.
Positive Pressure (The Preferred Setup)
Install the fan blowing into the enclosure, with the filter mounted on the outside face.
This forces air into the chassis, raising the internal air pressure slightly above the ambient room pressure. Because air naturally moves from high pressure to low pressure, air actively bleeds outward through every unsealed seam, drive bay, and cable grommet. As long as every intake fan is covered by a clean filter, no unfiltered air can enter the system.
Negative Pressure (The Common Mistake)
Mounting a filter on an exhaust fan pulling air out of the enclosure creates a partial vacuum inside.
The fan tries to evacuate the chassis, causing the internal pressure to drop below room ambient. Air will rush into the enclosure through every crack, USB port, and unsealed panel seam to equalize the pressure. That incoming air bypasses the exhaust filter entirely, depositing raw dust straight onto your components.
Filtering an exhaust fan only makes sense in specialized installations where the enclosure contains hazardous, toxic, or abrasive dust that must be prevented from escaping into the surrounding room. For electronics cooling, filter the intake.
How to Choose the Right Fan Filter
Specifying a filter requires looking at the cooling loop as an integrated circuit. Work through these six engineering criteria before buying:
- Calculate Static Pressure Headroom: Look up your fan's P-Q curve. If your fan delivers 60 CFM at zero static pressure but drops to 20 CFM at 1.5mmH2O, a dense filter will crush your cooling budget. Make sure your fan has enough static pressure headroom to push through a clean filter plus the added impedance of a partially loaded dust layer.
- Match Density to the Particulate Profile: Don't default to 100 PPI thinking "cleaner is better." If your equipment lives in an air-conditioned office or clean telecommunications room, 30 or 45 PPI foam captures the critical debris without penalizing thermal margins. Reserve 60+ PPI for shop floors, dusty warehouses, or agricultural settings.
- Check EMI/EMC Regulations: If your hardware produces high-frequency digital switching noise or requires protection from outside RF interference, plastic foam will not pass regulatory compliance. Specify an aluminum or stainless steel fan filter assembly with a conductive mounting gasket.
- Account for Flammability Ratings: In commercial and industrial electronics, materials must meet fire safety standards. Ensure any plastic frame carries a UL94V-0 or UL94V-1 rating, and confirm that the foam media is flame-retardant (such as reticulated polyester-polyurethane treated to pass UL94 HF-1).
- Evaluate Physical Clearances: A plastic snap-on assembly adds 6mm to 10mm of external thickness to the fan face. Verify that door panels, exterior grilles, or adjacent server rack rails have enough clearance so the filter retainer does not bind.
- Plan for Accessibility: If servicing the filter requires taking a machine offline, removing twenty machine screws, or reaching around high-voltage busbars, maintenance will be skipped. Choose tool-free snap-fit retainers or pre-assembled fan kit solutions with slide-out rails whenever possible.
How to Service Polyurethane Foam Media
- Pop off the plastic retainer frame.
- Inspect the media. If the foam is flaking, powdery, or crumbling, it has suffered chemical or hydrolytic degradation; throw it away and insert fresh media.
- If the foam is physically sound, tap it gently over a trash bin to dislodge loose surface dust.
- Rinse the pad under warm tap water from the clean side to the dirty side (back to front) so you flush particles out the way they came in rather than driving them deeper into the core.
- Wash with a mild dish soap if grease or oily residues are present.
- Squeeze the foam flat between your palms to remove excess water. Never wring, twist, or stretch open-cell foam, as you will tear the internal microscopic struts.
- Allow the media to dry 100% before placing it back into the assembly. Installing damp foam next to high-voltage electronics invites short circuits and corrosion.
Frequently Asked Questions
How much CFM do I actually lose when installing a fan filter?
With a clean 45 PPI polyurethane foam filter, expect an immediate airflow drop of roughly 15% to 30%, depending on the fan’s static pressure capabilities. High-airflow, low-pressure fans take the biggest hit, while high-static-pressure fans maintain a higher percentage of their rated volume.
Can I run high-density 100 PPI media on standard case fans?
Generally, no. Standard cooling fans designed for quiet PC or server operation produce low static pressure (1.0 to 2.0 mmH2O). A 100 PPI sheet presents so much resistance that these fans will stall, spinning loudly while barely moving any air. Running 100 PPI requires high-torque, industrial-grade blowers or counter-rotating fan pairs.
Why does my system run hotter even though the filter looks clean?
A clean filter still imposes measurable impedance. If your cooling design was already operating near thermal limits without a filter, that 20% loss in volumetric airflow may be enough to raise internal temperatures past your thermal margin. You may need to increase fan speed, upgrade to a higher-pressure fan, or increase the surface area of the intake vent.
Are metal mesh filters as effective at stopping dust as foam filters?
No. A standard wire mesh filter (like 30x30 or 40x40 grid) is designed to catch large fibers, insects, and coarse particles while maintaining minimal airflow resistance and providing EMI shielding. It cannot trap the fine, microscopic dust that open-cell foam handles. Metal mesh is primarily chosen for durability, washability, and electrical compliance rather than high-efficiency particulate capture.
Should I ever place a filter on an exhaust fan?
Rarely. Filtering an exhaust fan creates negative chassis pressure, which turns your enclosure into a vacuum that pulls unfiltered dust through every unsealed seam and port. Filter your exhaust fans only if your enclosure generates dangerous or toxic particulate internally that must be kept from escaping into the surrounding room.
