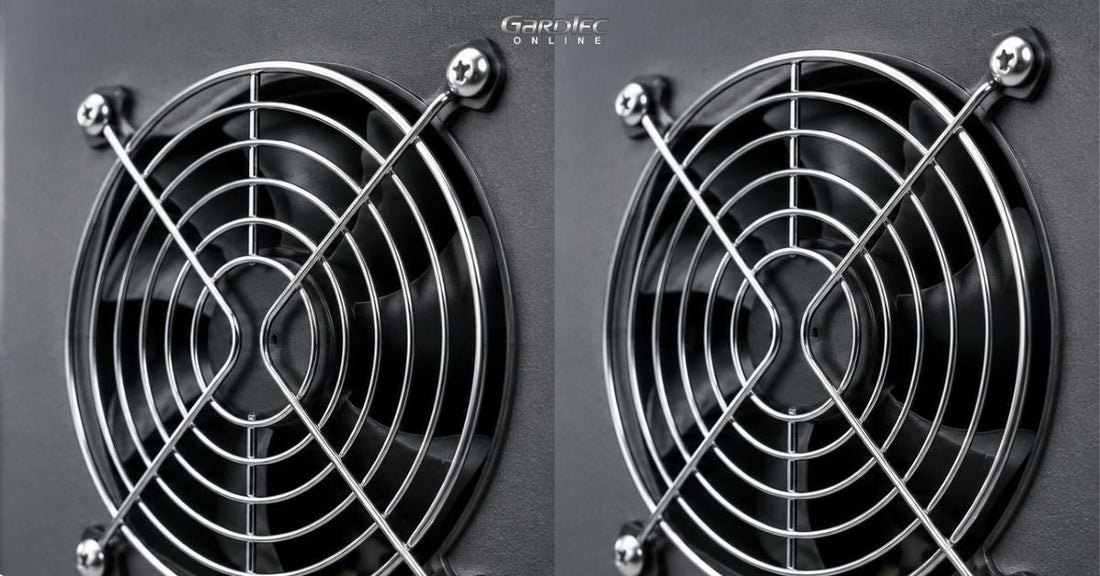

How to Install a Fan Guard in 5 Simple Steps

Fan guards are used in electrical cabinets, HVAC units, server racks, and industrial machinery. Although fans play an important role in regulating airflow and protecting devices from overheating, they may pose safety risks when their blades are exposed. Installing the fan guard protects the fan as well as the rest of the equipment by ensuring optimal airflow through the device.

We will help you install a fan guard in a few easy steps. In this wire fan guard installation guide, you will learn how to fit the grill in just five steps.

What’s the Benefit of a Fan Guard?

Before proceeding with the installation of the fan guard, it is critical to understand the purpose of fan guards. A good fan grill provides additional security by creating a protective covering around the rotating blades while minimizing any obstruction of airflow. The wire mesh helps minimize injuries, prevent debris from getting inside the fan, and increase the durability of the cooling system.

In systems where electronics cooling fans are used, such as control panels, telecom, and server racks, it will be of great benefit.

Tools You'll Need for Installing Fan Guard

You’ll just need a handful of simple household tools, like:

• Screwdriver
• Mounting screws according to fan size
• Ruler or measuring tape (when necessary)
• Rubber gloves
• Fan guard that fits your fan size (Be sure to check the measurements of your fan before buying one)

Step 1: Turn Off Power and Inspect the Fan

While installing a fan guard, the priority must always be on safety. It is important to disconnect the power supply from the device. Make sure that the fan has stopped running before beginning the process.

It is important to check the condition of the fan guard mounting points and the environment around the fan for potential damage, excess accumulation of dirt, and any other issues that may exist. This will also provide an ideal condition to clean both the fan blade and its surrounding areas.

In case the current guard is faulty, bent, or rusted, it is necessary to replace it.

Step 2: Select the Correct Fan Guard

Selection of an appropriate fan cover is key to optimal performance and safety. Fan guards come in various diameters and styles to fit particular fan models and applications. In many cases, wire fan guards are favored because they ensure good airflow as well as adequate protection. Typical choices include guards for AC cooling fans, DC cooling fans, and even heavy industrial settings.

Factors to take into account when selecting a guard include:

• Diameter of the fan
• Mounting holes of the fan
• Application environment
• Required airflow
• Durability

To accommodate harsher surrounding conditions, industrial fan guards made using steel wire are often best as they provide both adequate protection and ventilation.

Step 3: Align the Guard with the Fan Housing

Mounting the guard right above the fan ensures that the mounting holes of the guard match those of the casing. Proper positioning is vital since any misalignment in mounting could lead to vibration, noise production, or interference with the rotating blades of the fan. Ensure that the guard is at enough distance from the fan blades. Mounting the fan guard must now be carried out meticulously to ensure proper placement of the guard.

Step 4: Secure the Guard Using Appropriate Fasteners

Mounting screws, bolts, or any other compatible fastener must be fitted in the mountings and tightened evenly. Avoid over-tightening as it may affect the shape of the mesh structure. The objective is to fix the guard firmly but not overstress any part of the guard assembly.

If the fan runs in a high-vibration zone, periodic inspection of the mounting parts may be necessary during the maintenance process. After fixing, check the guard for any movement or rattling motion.

Step 5: Test the Fan and Verify Performance

Once the installation process is done, plug and test run it. Check the working of the fan by inspecting its:

• Smooth operation
• Clear air flow path
• Any kind of unusual sounds
• Vibration
• Blades touching the guard

A well-installed fan safety guard is supposed to be stable and provide free air passage through it. In case you face any problem with the fan's working, stop the equipment and perform the necessary checks again.

Fan Guard Installation Checklist

Choosing the Right Guard for Your Application

Not all types of fan guards are intended for the same kind of setting. Some of the most common fan guards supplied by various industrial providers, including GardTec, include:

• Wire Fan Guard Installation: This is one of the most commonly used types of fan guards since it combines great levels of protection with high airflow capacity.
• Heavy-Duty Industrial Fan Guards: When working in settings that have vibration, dust, and/or frequent maintenance needs, it would be best to consider this kind of fan guard.
• Custom & Size-Specific Fan Guards: When searching for replacement fan guards in commercial facilities, opting for precise size and mounting makes things easier. Users can also consider special cooling fan protection for large-scale ventilation systems and cabinet fans.

Conclusion

The fan guard installation is one of the easiest maintenance procedures that will not only save you time but also enhance the performance of your fans. The entire process can be done in just five easy-to-follow steps: turning off the machine, choosing an appropriate fan guard, positioning it accurately, fastening its mountings, and conducting tests.

This simple yet effective procedure will make sure that your fans last longer, your airflow remains efficient, and most importantly, your people will be safer from potential harm.

FAQs

Q1. What is a fan guard?

A fan guard is a protective grill around the fan blades. It prevents accidental contact with the moving blades when the fan is operational. It also protects the inner components of the fan from damage.

Q2. How to install fan guards?

Unplug the fan, mount the rear grill to the motor cover with either a factory fitting cover or some screws. Slide on the fan blades and fit the front grill in place.

Q3. Why is my fan guard vibrating or producing noise after installing it?

The problem lies in the hardware – it vibrates when not secured correctly. Please check whether the center fan guard knob, which is usually reverse-threaded, is securely tightened, and whether the bottom clips are firmly in place.

Q4. Are all fan guards one-size-fits-all?

Not at all. Fan guards can differ in many ways, such as diameter and screw mount versus clip mount. Make sure you check your particular fan's user manual for a compatible guard fit.
