Walk onto any factory floor, sawmill, or packaging plant, and you’ll find electrical control cabinets humming quietly in the corners. Tucked inside are the brains of the entire operation: programmable logic controllers (PLCs), variable frequency drives (VFDs), power supplies, and safety relays.
These components demand a stable, predictable climate to survive. The reality on the ground, however, is rarely clean or climate-controlled.
In heavy processing areas, ambient heat combines with fine sawdust, metal shavings, and airborne grit. Simply bolting a bare vent or a computer fan onto the panel often does more harm than good—it turns the cabinet into an industrial vacuum cleaner, coating delicate electronics in grime.
Real protection requires dependable cabinet cooling solutions that strip away excess heat while keeping the surrounding mess outside where it belongs.
The Compounding Trap of Heat and Airborne Dust
Heat and dust are troublesome on their own, but together, they create a compounding cycle of hardware degradation inside electrical enclosures.
Trapped Heat Degrades Silicon
Modern solid-state components pack high power density into small footprints. Heat sinks on VFDs and power supplies shed thermal energy constantly. In a closed steel box running continuous shifts, this trapped energy has nowhere to go. Internal temperatures steadily climb 15°C to 30°C above room ambient levels, pushing sensitive silicon dies into thermal throttling and drastically shortening their working lifespan.
Dust Acts as an Insulating Blanket
When unfiltered air enters the cabinet, fine particulate matter settles over circuit boards, microprocessors, and heat sink fins. This layer acts like a wool blanket. Even if cool air passes over the component, the caked dust stops heat from transferring into the air stream. Over time, that buildup attracts ambient moisture during humidity shifts, raising the risk of dielectric breakdown, tracking arcs, and costly board-level short circuits.
Comparing Cabinet Cooling Methods for Dusty Environments
Different floor environments require different thermal strategies. Choosing the right setup depends on ambient shop floor temperatures, contamination severity, and how much heat the internal drives produce.
|
Cooling Method |
Best Suited For |
Dust Protection |
Practical Trade-Off |
|
Open Fan Ventilation |
Clean, dedicated control rooms |
Poor (unfiltered air enters panel) |
Cheap and simple, but unusable around dust |
|
Filtered Cabinet Cooling Fan Kit |
Light-to-heavy ambient dust |
High (with positive internal pressure) |
Requires regular filter pad checks |
|
Air-to-Air Heat Exchanger |
High dust with mild ambient temps |
Sealed (NEMA 4 / IP65 isolation) |
Needs ambient air significantly cooler than the cabinet |
|
Closed-Loop Enclosure A/C |
Severe dust, oily mist, extreme shop heat |
Maximum (sealed internal circuit) |
Higher equipment cost and larger physical footprint |
Why a Dedicated Cabinet Cooling Fan Kit Is the Practical Choice
For facilities where shop floor temperatures remain cooler than the maximum allowable rating of the electronics (typically under 40°C to 45°C), forced-air ventilation remains the most cost-effective thermal defense.
Piecing together random fans, cut-to-fit foam, and makeshift wire covers usually leaves gaps in your enclosure rating. This is where an integrated cabinet cooling fan kit pays for itself.

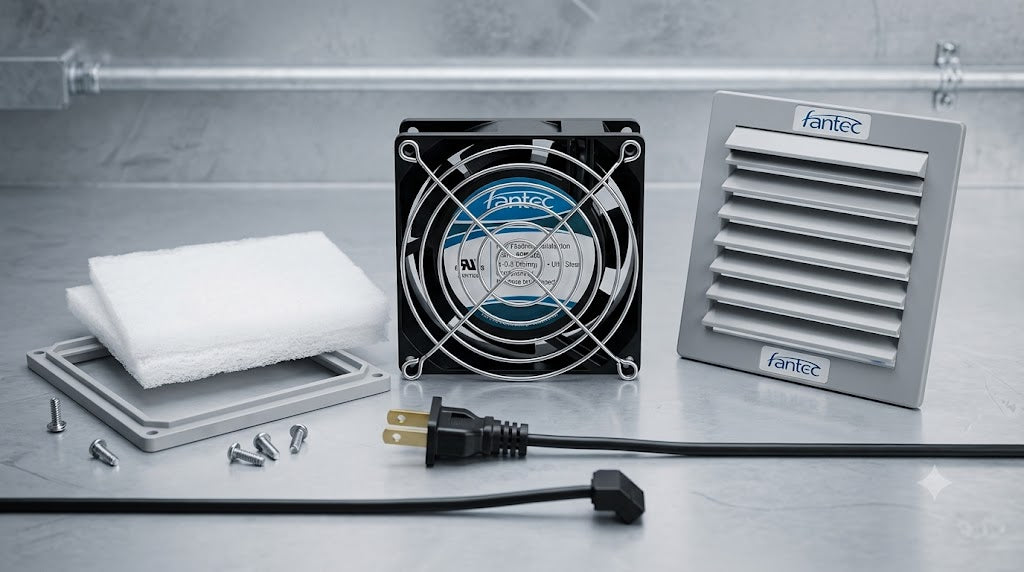

A matched kit standardizes the installation by including:
- High-static pressure blowers: Standard exhaust fans stall when backed against dense filter pads. Industrial kits use motors designed to push consistent CFM through loaded media.
- Louvered outer hoods: Slanted grilles deflect falling debris, accidental washdowns, and settling shavings before they reach the filter face.
-
Gasketed housings: Closed-cell foam perimeter seals ensure no dirty air leaks past the frame edges.
The Golden Rule of High-Dust Cooling: Maintain Positive Pressure
Airflow direction dictates whether a panel stays clean or fills with dirt. Many installers mistakenly set up exhaust fans at the top of the cabinet to suck out hot air without powering the intake. This creates negative pressure, turning every unsealed door seam, latch hole, and conduit knockout into a leak that draws unfiltered dust inside.
To keep dust out, you need positive pressure:
- Intake at the Bottom: Mount the filtered intake fan near the base of the cabinet, where ambient floor air is coolest.
- Exhaust at the Top: Place a filtered, unpowered louver port near the top to exhaust hot air as it naturally rises.
- Slight Intake Bias: Ensure the intake fan pushes slightly more CFM than the exhaust vent allows out freely. This creates internal outward pressure, ensuring that any unsealed gap leaks clean air outward rather than pulling dirty plant air inward.
Sourcing Upgrades Through a Specialized Fan Accessory Provider
Achieving reliable cabinet cooling goes beyond just picking a fan off a shelf. Working with a dedicated fan accessory provider gives maintenance teams access to the specialized components that keep systems running smoothly between scheduled turnarounds.
Industrial-Grade Media Options
Standard open-cell foam degrades quickly under factory heat and airborne oils. A specialized supplier can match your particulate type with:
- Washable multilayer aluminum or stainless steel mesh for coarse grit and metal flakes.
- Electrostatic pleated pads for fine dust and wood flour.
- Quick-release snap-fit filter frames that allow floor operators to swap saturated media in seconds without opening cabinet doors.
Smart Thermal Controls
Fans do not need to run at full speed 24 hours a day. Running blowers when the cabinet is cold draws unnecessary dust into the filter face and wears out motor bearings. Pairing the system with an adjustable bimetallic thermostat or an electronic speed controller ensures fans run only when internal heat demands active airflow.
Routine Maintenance That Prevents Emergency Shutdowns
Even the best-engineered cooling setups will fail if left unattended on a busy production floor. A basic, disciplined upkeep routine keeps equipment running smoothly:
- Check filter loading every 2–4 weeks: Set inspection intervals based on local dust conditions. If filter pads are discolored or caked, service them before airflow drops.
- Feel for outward pressure: Place a hand over the perimeter seams. You should feel a gentle outward air leak around the gaskets, confirming positive pressure.
- Listen for motor stress: High-pitched bearing whine or unusual vibration indicates that a fan motor is working against an obstructed filter or nearing mechanical end-of-life.
- Clear internal settled dust with a HEPA vacuum: Never blow compressed shop air inside a dirty panel. Doing so forces conductive particles directly into open circuit traces and relay contacts.
Frequently Asked Questions
What makes positive pressure so effective against industrial dust?
Positive pressure means the intake fan pushes more filtered air into the cabinet than the exhaust vent lets out. This forces clean air outward through unsealed seams, wire pass-throughs, and latch holes, actively blocking airborne dust from sneaking in.
How do I know if my cabinet needs an air conditioner instead of a fan kit?
If the air temperature on your plant floor regularly matches or exceeds the maximum safe operating limit of your components (typically around 40°C), fans cannot cool the enclosure below that floor temperature. At that point, or in atmospheres containing oily, conductive, or corrosive mists, you need a closed-loop air conditioner or sealed heat exchanger.
Can a cooling fan kit preserve an enclosure's NEMA or IP rating?
Yes. Industrial filter fan kits with closed-cell perimeter gaskets, rated synthetic filter mats, and downward-facing louvers are built to maintain NEMA 12 or IP54/IP55 ingress ratings against falling dust and light splashes.
What is the advantage of working with a fan accessory provider over buying generic parts?
A specialized supplier helps match the static pressure of the motor to the impedance of industrial-grade filters, louvers, and finger guards. This ensures the complete assembly delivers its rated airflow without burning out the motor or starving the cabinet of cooling.
