Modern-day electrical and electronic equipment produce heat when working, which makes airflow management very important in order to ensure performance and efficiency. Whether it is an industrial control panel, server cabinet, automation system, or electrical enclosure, it is vital to protect your equipment using a fan filter assembly.
These cooling fan filters help manage airflow while ensuring contaminants are prevented from getting into the equipment. Knowledge about how fan filter assemblies operate can be invaluable in helping you make an informed decision regarding the equipment when buying.

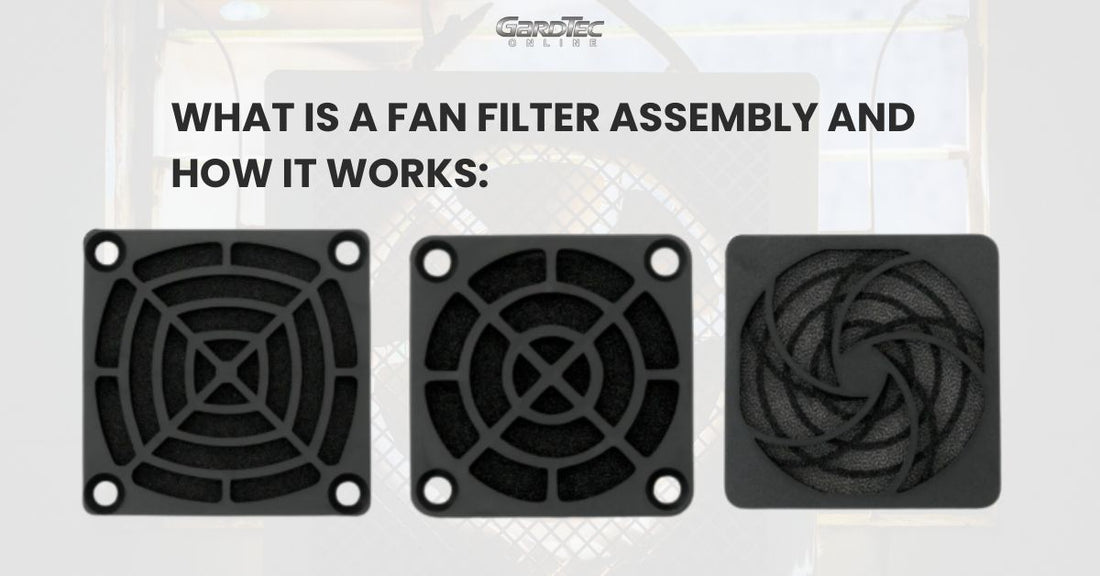

What Is a Fan Filter Assembly?
Fan Filter Assembly is one of the types of ventilation systems that let air enter or exit an enclosure while filtering out any contaminants in the air, such as dust, dirt, fibers, and other foreign particles.
The fan filter assembly generally includes the following parts:
- Ventilation fan
- Filter elements
- Protective enclosure
- Fittings and mounting accessories
- May also include seals
The basic function of an air filter assembly is to ensure a way for air to pass through while stopping any foreign matter from entering the equipment. It is a crucial assembly for many electronics cooling applications. In the absence of the right filtration, particles present in the air may build up in the equipment, causing overheating and unexpected failure.
Why Equipment Requires Filtered Airflow
Heat produced by electronic and electrical systems during operation builds up, resulting in overheating if it is not removed from the system. Overheating can cause:
- Decrease in performance
- More chances for malfunctioning
- Uneventful shutdown of the machine
- Damage to equipment
- Costly maintenance
The role of fan filter kits is to provide the enclosure with fresh air by eliminating heated air from inside. Yet, using ambient air to cool down may involve additional contaminants in the enclosure. In this situation, a fan filter unit will prove helpful. It provides efficient and consistent airflow to the enclosure without any unwanted particulate matter.
How a Fan Filter Assembly Works
The process involved in the working of industrial fan filters is very simple but quite efficient.
Step 1: Air intake
Air is drawn into the enclosures from the surrounding environment by fans.
Step 2: Filtration process
After drawing air in the enclosures, it is passed through the filter material. The filter is responsible for capturing dust, fibers, pollen, and other pollutants.
There can be various filter materials, depending upon the application.
Step 3: Air circulation
Clean air is circulated in the enclosures to take care of the heat generated inside.
Step 4: Heat removal
The flow of air removes heat from electrical equipment and power supplies installed inside the enclosures.
Step 5: Exhaust ventilation
Warm air is then exhausted out of the enclosures through exhaust vents and fans.
Main Components of a Fan Filter Assembly
Understanding the individual components helps illustrate how the system functions.
|
Component |
Function |
|
Ventilation Fan |
Moves air through the enclosure |
|
Filter Media |
Captures airborne dust/contaminants |
|
Housing Frame |
Secures the filter & fan assembly |
|
Protective Grille |
Prevents accidental contact |
|
Mounting System |
It allows secure installation |
Each component contributes to the overall efficiency and reliability of the assembly.
Fan Filter Assembly Types
Various uses of cabinet cooling systems need differing capacities of airflow and filtering effectiveness.
- Basic Filter Assemblies: These are the types of filter assemblies meant for the ordinary use of electrical enclosure ventilation.
- High Air Flow Assemblies: They are used in situations where high heat loads exist to enable maximum heat extraction with maximum filtering capabilities.
- Industrial Units: The fan filters are designed for situations where dust and other elements are present. In many instances, most of the fan filters available in industrial setups are developed to suit factory usage.
- Filter Assembly Replacement Kits: A lot of facilities have replaced their basic fan filter assemblies with the modular fan filters, making replacement easy.
Common Applications
Fan filter assembly is utilized in various industrial applications and machinery.
- Industrial Control Panels: These have components inside that need temperature control as well as protection against dust particles.
- Automation Machines: The Programmable Logic Controllers, drives, and automation machines produce heat and need filtered airflow.
- Data & Networking Racks: The server racks and networking equipment need adequate airflow to avoid overheating.
- Manufacturing Machinery: Many manufacturing machines use enclosure cooling systems to protect the electronic components inside.
- Electrical Enclosures: There are different cabinet cooling systems available that feature fan-filter assemblies.
Benefits of Using a Fan Filter Assembly
There are numerous benefits to installing the right-sized fan filter assembly.
- Greater Equipment Protection: Filtration decreases the level of dust and dirt particles that enter the enclosure and damage equipment.
- Increased Cooling Efficiency: The regular movement of air ensures that the operating temperature remains constant.
- Decreased Maintenance Expenses: A cleaner enclosure typically means reduced maintenance costs, which increases profitability.
- Longevity of Equipment: Fan filter assemblies ensure that equipment operates optimally for a longer period.
- Higher Equipment Reliability: The stability of equipment operation minimizes the chances of failure and unplanned downtime.
Selecting the Right Fan Filter Assembly
Selection of the right assembly involves the analysis of various factors, such as air flow requirements, environmental considerations, size of the enclosure, temperature considerations, and maintenance access. Calculate the amount of air flow needed for removing the heat produced by the equipment inside, as dirty surroundings may need better filters. Big enclosure sizes may need multiple ventilation openings. Ambient temperature and internal temperature both play an important role, while easy access is vital for fan filter maintenance.
Conclusion
A fan filter unit is one of the most efficient devices for ensuring a constant stream of fresh air inside electrical enclosures and automated machines. Combining ventilation and filtration in a single unit allows for protecting expensive electronics and ensures the effectiveness of the process. Depending on the application area, the selection of an appropriate filter unit contributes to increasing reliability and extending the lifespan of machines.
Contact GardTec at sarah@gardtecinc.com or call at: 262 634 5560 for industrial cooling fan systems in the USA.
FAQs
Q1. What is a fan filter assembly?
A Fan Filter Unit is a self-sustaining, motorized air filtration unit. The device draws air from the surroundings, filters the air using a highly effective filter that captures tiny particles, and then distributes the air evenly to a specific location.
Q2. How fan filter assembly work?
The unit acts as a localized, modular system for cleaning and filtering enclosed areas without using a huge air conditioning duct system. The mechanism works in three consecutive stages – a motor-driven fan draws in either contaminated or ambient air into the unit from the upper part of the device, then air moves through one or multiple filters. Usually, this involves passing through an initial pre-filter that will remove larger dust particles and hair. Next, the air goes through a HEPA or ULPA filter, removing minute particles such as bacteria, viruses, and sub-micron dust. Efficiency can reach up to 99.99%.
Q3. Where is the fan filter unit used?
Fan filter units are mainly used in places where there is the presence of a high amount of airborne contaminants. Typical usage areas of fan filter assemblies include medical facilities, pharmaceutical, biotech, and semiconductor industries. Fan filter assemblies are also used in operating theaters. When it comes to the application of fan filter assemblies for electronics and mechanics, they can be used in electronics and PC enclosures.
Q4. Is a fan filter unit better than an AHU?
FFUs have an efficiency rate of 99.99% with the use of HEPA filters or 99.9995% with ULPA filters, making them perfect for numerous applications in the aerospace industry. Moreover, FFUs make less noise compared to a bigger AHU.
